Connection Class Reference

Inheritance diagram for Connection:

Collaboration diagram for Connection:

Public Member Functions
def	__init__ (self)
def	open (self, ip, port, timeout)
def	open_SSL (self, ip, port, timeout, ssl_config=None)
def	authenticate (self, user_name, password)
def	execute (self, session_id, stmt)
def	execute_parameter (self, session_id, stmt, params)
def	execute_json (self, session_id, stmt)
def	execute_json_with_parameter (self, session_id, stmt, params)
def	signout (self, session_id)
def	close (self)
def	ping (self)
def	reset (self)
def	idle_time (self)
def	get_address (self)

Public Attributes
	start_use_time

Static Public Attributes
bool	is_used = False

Detailed Description

Definition at line 33 of file Connection.py.

Member Function Documentation

authenticate()

def authenticate	(		self,
			user_name,
			password
	)

authenticate to graphd

:param user_name: the user name
:param password: the password
:return:

Definition at line 110 of file Connection.py.

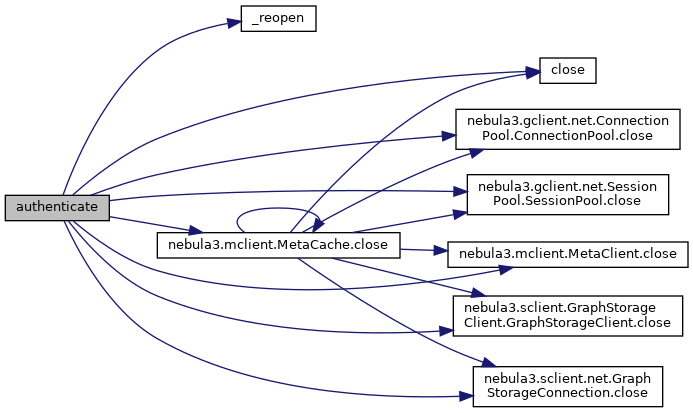

Here is the call graph for this function:

close()

def close

(

self

)

close the connection

:return: void

Definition at line 210 of file Connection.py.

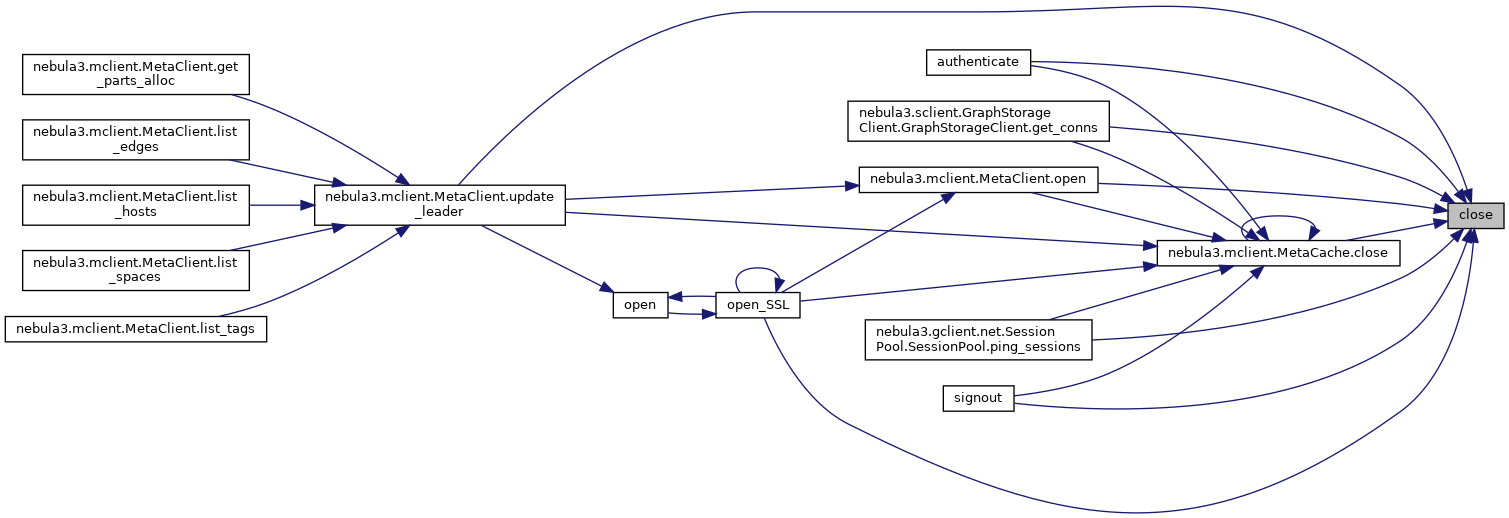

Here is the caller graph for this function:

execute()

def execute	(		self,
			session_id,
			stmt
	)

execute interface with session_id and ngql

:param session_id: the session id get from result of authenticate interface
:param stmt: the ngql
:return: ExecutionResponse

Definition at line 131 of file Connection.py.

Here is the call graph for this function:

Here is the caller graph for this function:

execute_json()

def execute_json	(		self,
			session_id,
			stmt
	)

execute_json interface with session_id and ngql
:param session_id: the session id get from result of authenticate interface
:param stmt: the ngql
:return: string json representing the execution result

Definition at line 165 of file Connection.py.

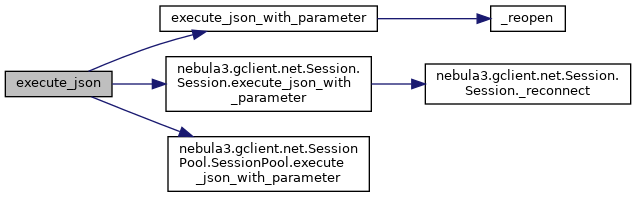

Here is the call graph for this function:

execute_json_with_parameter()

def execute_json_with_parameter	(		self,
			session_id,
			stmt,
			params
	)

execute_json interface with session_id and ngql with parameter
:param session_id: the session id get from result of authenticate interface
:param stmt: the ngql
:param params: parameter map
:return: string json representing the execution result

Definition at line 173 of file Connection.py.

Here is the call graph for this function:

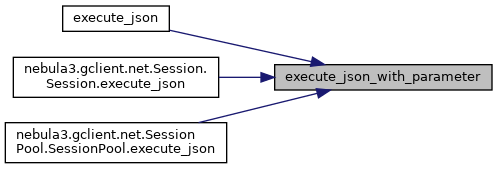

Here is the caller graph for this function:

execute_parameter()

def execute_parameter	(		self,
			session_id,
			stmt,
			params
	)

execute interface with session_id and ngql
:param session_id: the session id get from result of authenticate interface
:param stmt: the ngql
:param params: parameter map
:return: ExecutionResponse

Definition at line 140 of file Connection.py.

Here is the call graph for this function:

Here is the caller graph for this function:

get_address()

def get_address

(

self

)

get the address of the connected service

:return: (ip, port)

Definition at line 248 of file Connection.py.

idle_time()

def idle_time

(

self

)

get idletime of connection

:return: idletime

Definition at line 239 of file Connection.py.

open()

def open	(		self,
			ip,
			port,
			timeout
	)

open the connection

:param ip: the server ip
:param port: the server port
:param timeout: the timeout for connect and execute
:return: void

Definition at line 44 of file Connection.py.

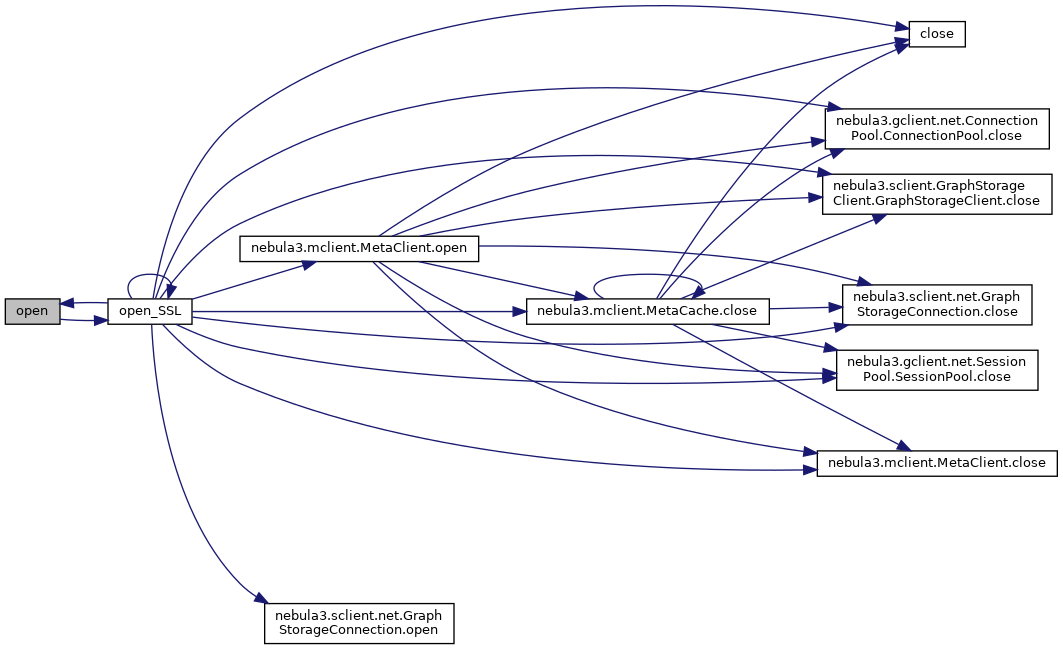

Here is the call graph for this function:

Here is the caller graph for this function:

open_SSL()

def open_SSL	(		self,
			ip,
			port,
			timeout,
			ssl_config = None
	)

open the SSL connection

:param ip: the server ip
:param port: the server port
:param timeout: the timeout for connect and execute
:ssl_config: configs for SSL
:return: void

Definition at line 54 of file Connection.py.

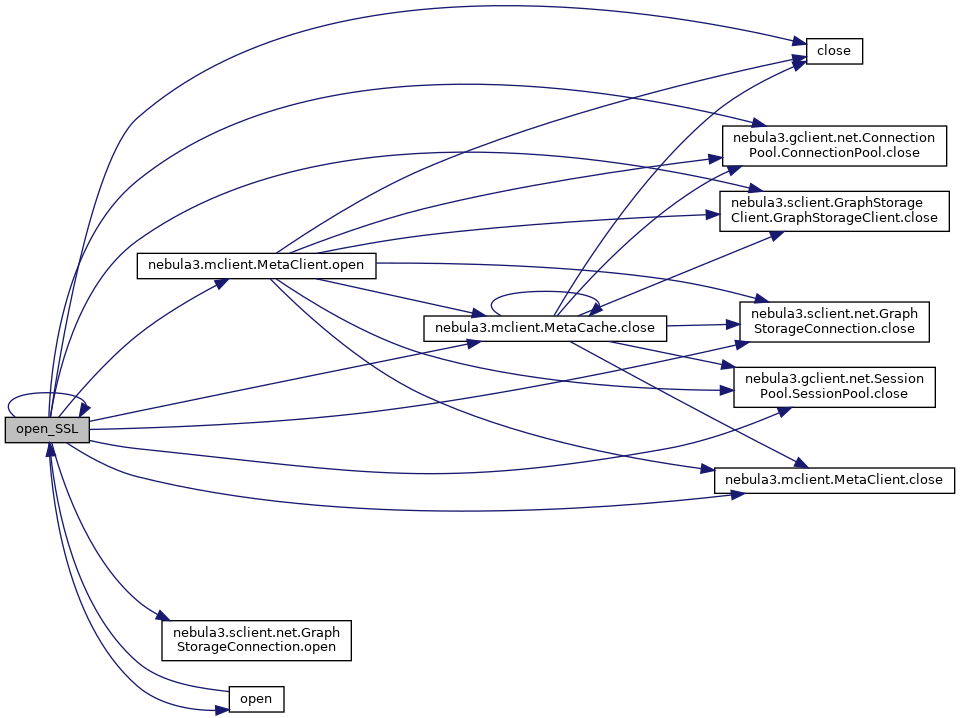

Here is the call graph for this function:

Here is the caller graph for this function:

ping()

def ping

(

self

)

check the connection if ok
:return: True or False

Definition at line 222 of file Connection.py.

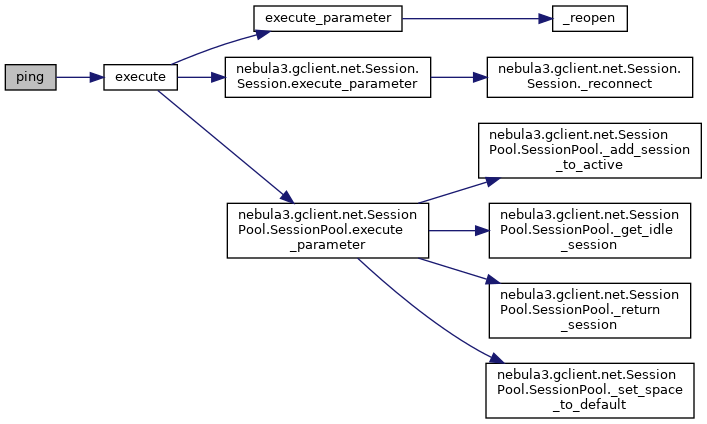

Here is the call graph for this function:

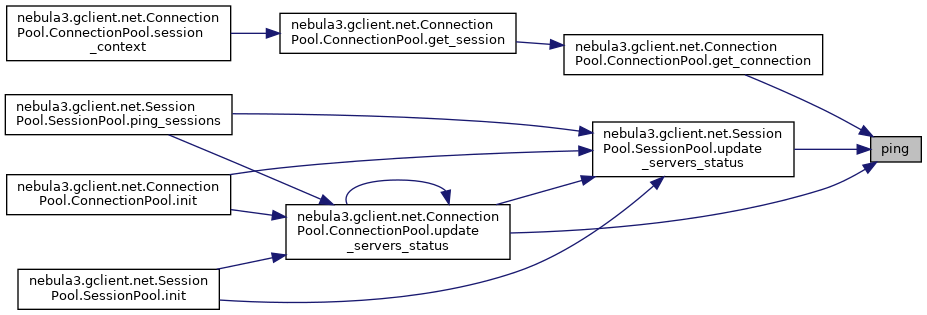

Here is the caller graph for this function:

reset()

def reset

(

self

)

reset the idletime

:return: void

Definition at line 232 of file Connection.py.

signout()

def signout	(		self,
			session_id
	)

tells the graphd can release the session info

:param session_id:the session id
:return: void

Definition at line 198 of file Connection.py.

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• nebula3/gclient/net/Connection.py
